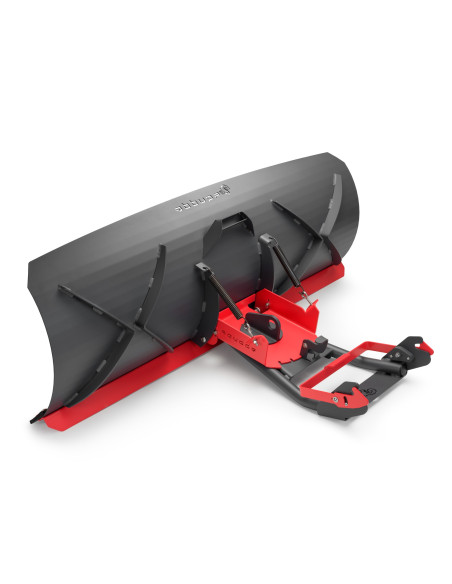

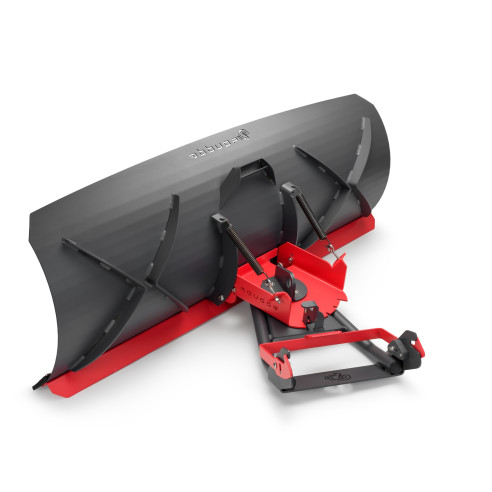

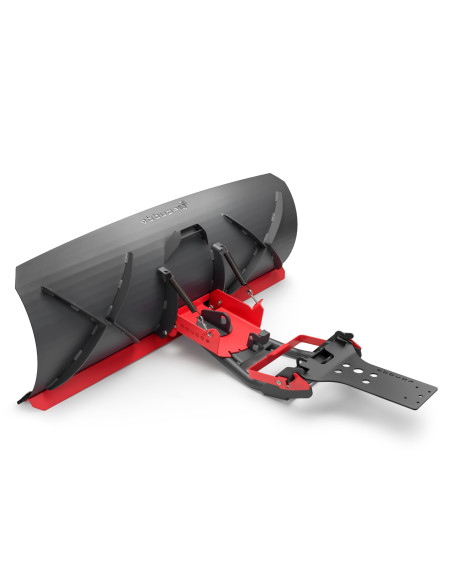

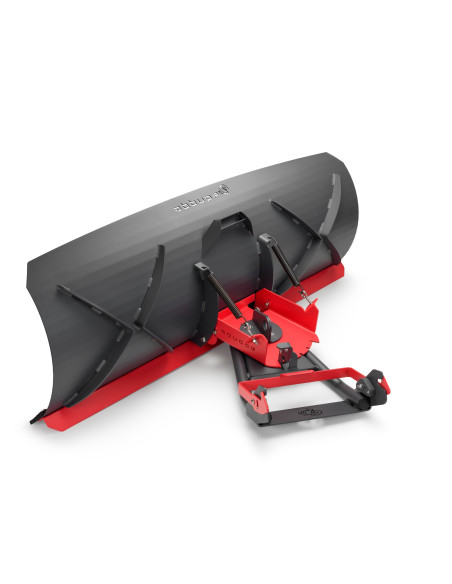

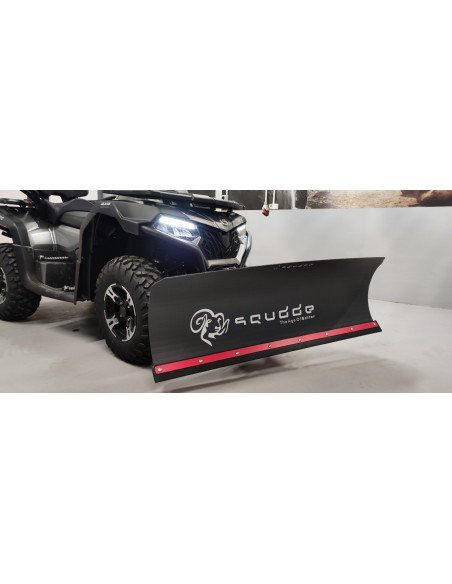

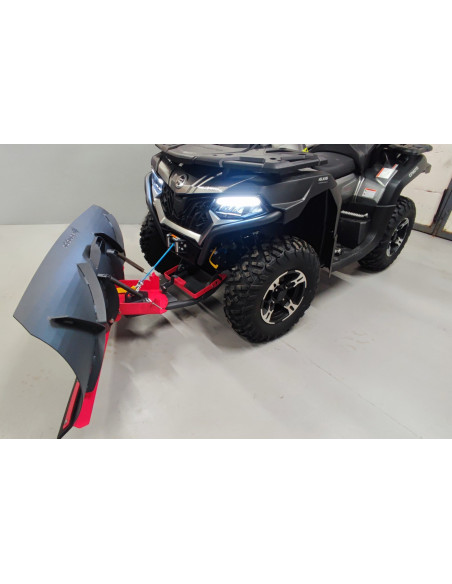

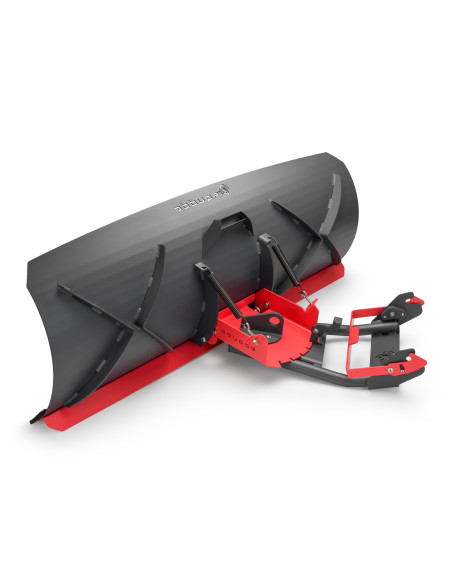

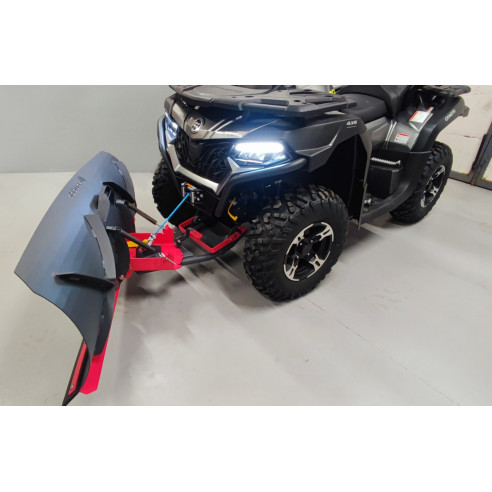

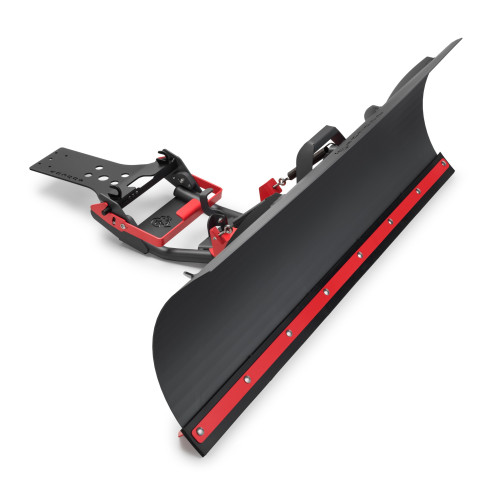

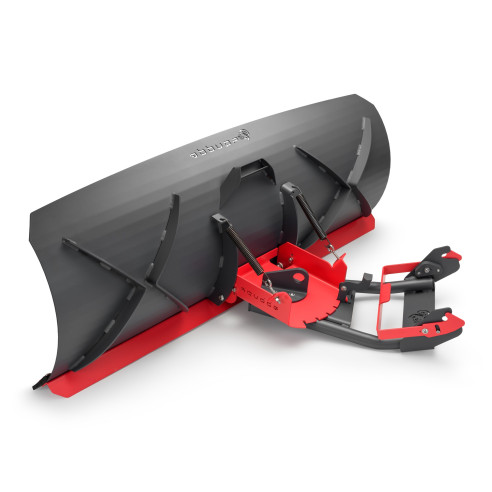

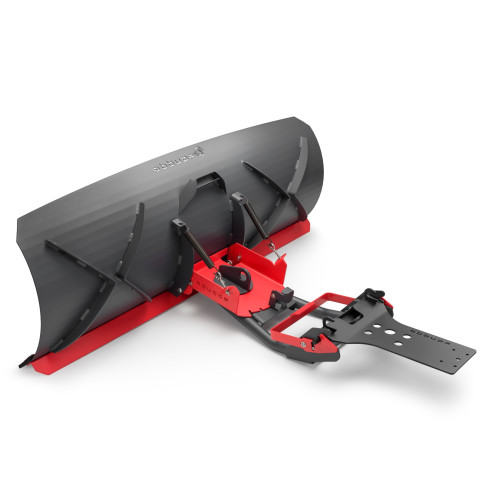

PLOW FOR QUAD POLARIS 570 - SQUDDE

2022-2023, 2020, 2015-2016 Sportsman Touring 570 EPS

2022-2023, 2020, 2015-2016 Sportsman Touring 570

2022-2023, 2020, 2015-2016 Sportsman 570 EPS

2022-2023, 2020, 2015-2016 Sportsman 570

2022-2023, 2020 Sportsman Touring 570 Premium

2022-2023, 2020 Sportsman 570 Premium

2022-2023 Sportsman 6x6 570

2022-2023 Sportsman 450 H.O. Utility

2022-2023 Sportsman 450 H.O. EPS

2022-2023 Sportsman 450 H.O.

2022, 2020 Sportsman X2 570

2022 Sportsman 570 Utility HD

2022 Sportsman 570 Ultimate Trail Limited Edition

2022 Sportsman 570 Ride Command Edition

2022 Sportsman 570 Hunt Edition

2022 Sportsman 570 EPS Utility

2022 INTL Sportsman 6x6 570 EPS SE

2022 INTL Sportsman 570 EPS Tractor Agri Pro

2022 INTL Sportsman 570 EPS SP Ohlins Edition SE

2022 INTL Sportsman 570 EPS LE

2021-2023 Sportsman 570 Trail

2021, 2019, 2017 Sportsman® Touring 570 EPS

2021, 2019, 2017 Sportsman® 570 EPS

2021, 2019, 2017 Sportsman® 450 H.O. EPS

2021, 2019 Sportsman® 6x6 570

2021, 2017-2019 Sportsman® X2 570

2021, 2017-2019 Sportsman® Touring 570

2021, 2017-2019 Sportsman® 570

2021, 2017-2019 Sportsman® 450 H.O.

2021 Sportsman® Touring 570 Premium

2021 Sportsman® 570 Ultimate Utility

2021 Sportsman® 570 Premium

2021 Sportsman 570 Ultimate Trail

2021 Sportsman 570 SP Hunter Edition

2021 INTL Sportsman® X2 570 EPS

2021 INTL Sportsman® Touring 570 EPS SP

2021 INTL Sportsman® Touring 570 EPS

2021 INTL Sportsman® 6x6 570 EPS LE

2021 INTL Sportsman® 6x6 570 EPS

2021 INTL Sportsman® 570 EPS SP

2021 INTL Sportsman® 570 EPS SE

2021 INTL Sportsman® 570 EPS Hunter Edition

2021 INTL Sportsman® 570 EPS Black Edition

2020 Sportsman X2 570 EPS Tractor

2020 Sportsman Touring 570 EPS SP

2020 Sportsman 6x6 570 EPS

2020 Sportsman 570 Premium LE

2020 Sportsman 570 EPS SP

2020 Sportsman 570 EPS Hunter Edition

2020 Sportsman 570 EPS Agri-Edition

2020 Sportsman 450 EPS

2020 Sportsman 450

2019, 2017 Sportsman® Touring 570 SP

2019 Sportsman® 570 SP Hunter Edition

2019 Sportsman® 570 EPS LE

2019 Sportsman® 450 H.O. EPS Utility Edition

2019 Sportsman® 450 H.O. EPS LE

2018 Sportsman® 6x6

2018 Sportsman® 450 HO Utility Edition

2017-2019 Sportsman® 570 SP

2017-2019 Sportsman® 570 EPS Utility Edition

2017 Sportsman® 6x6 BIG BOSS 570 EPS

2017 Sportsman® 450 H.O. Utility Edition

2016 Sportsman 450 HO

2015-2016 Sportsman X2 570 EPS

2015-2016 Sportsman Touring 570 SP

2015-2016 Sportsman 570 SP

2015 Sportsman ETX

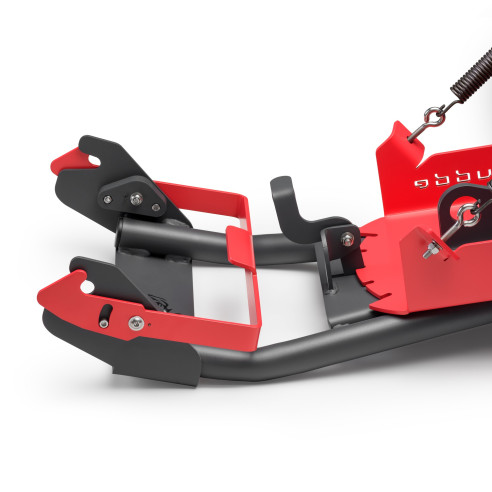

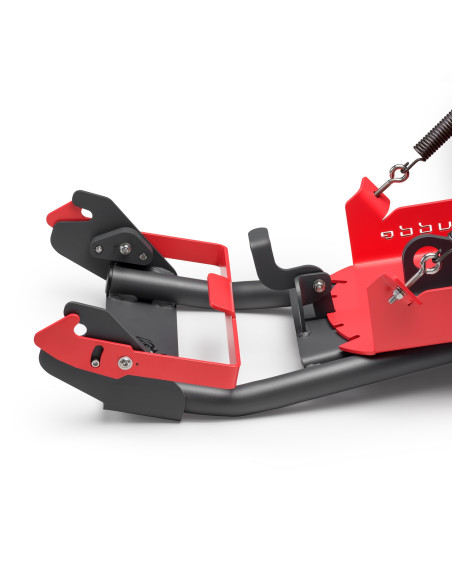

Frame Construction:

• Sturdy steel frame construction made of 38 mm diameter tubes with a wall thickness of 2.6 mm.

• The frame construction includes 5-6 mm thick sheet metal.

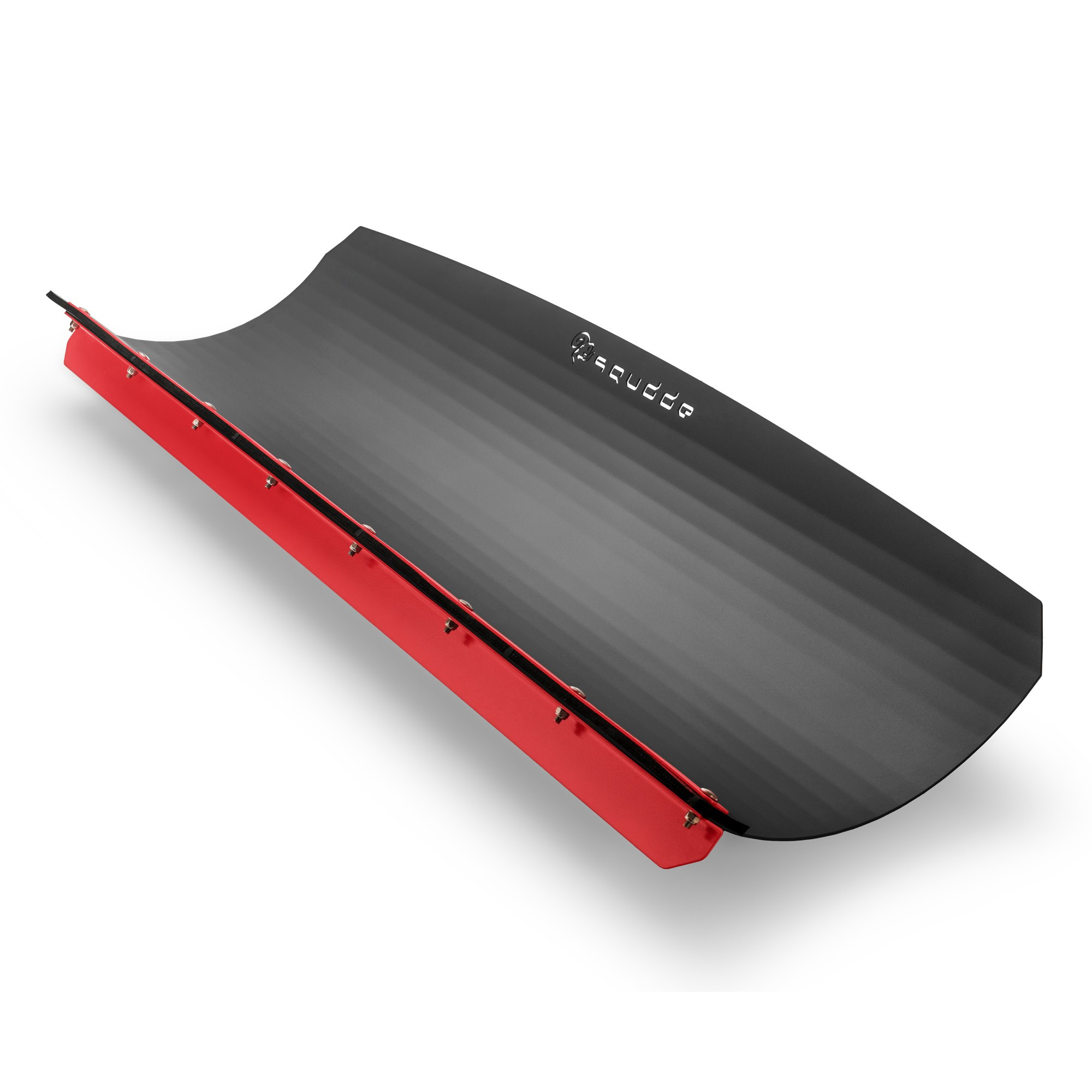

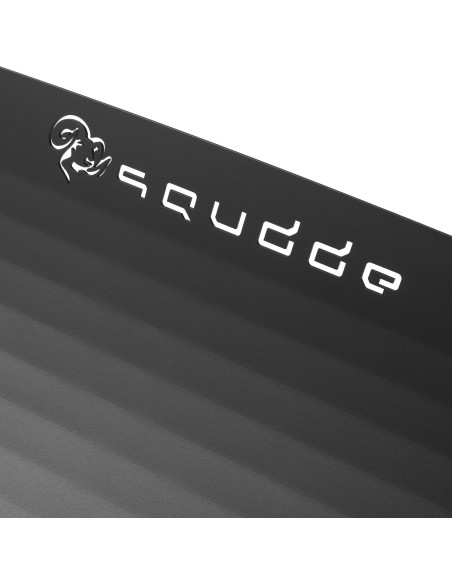

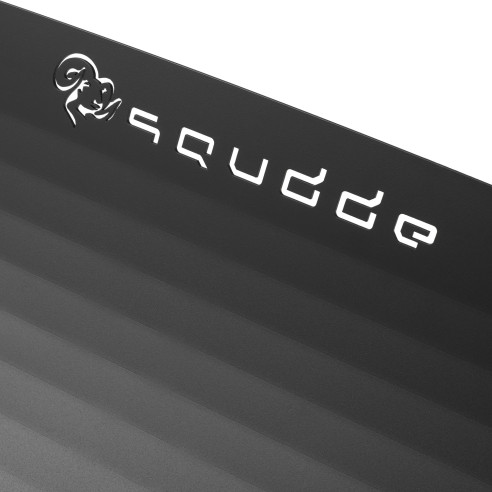

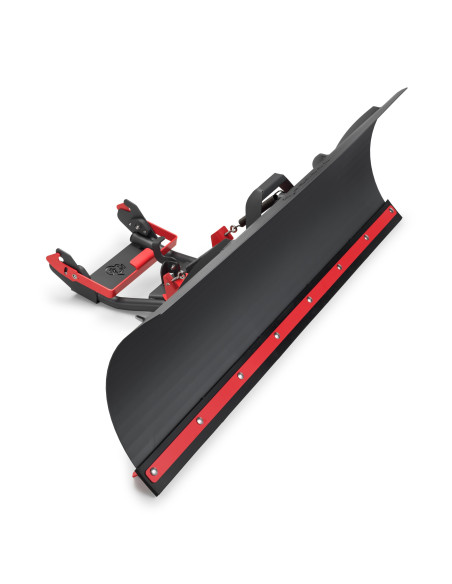

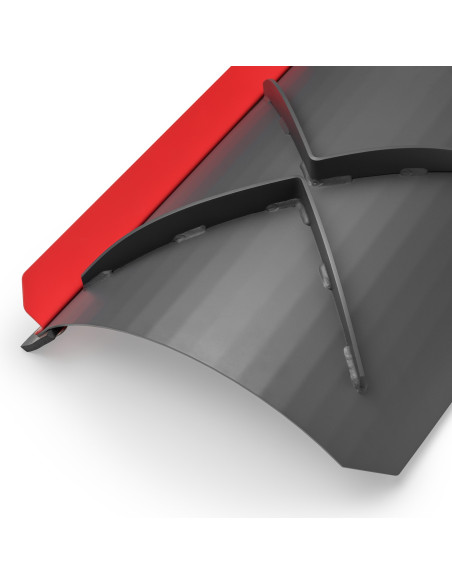

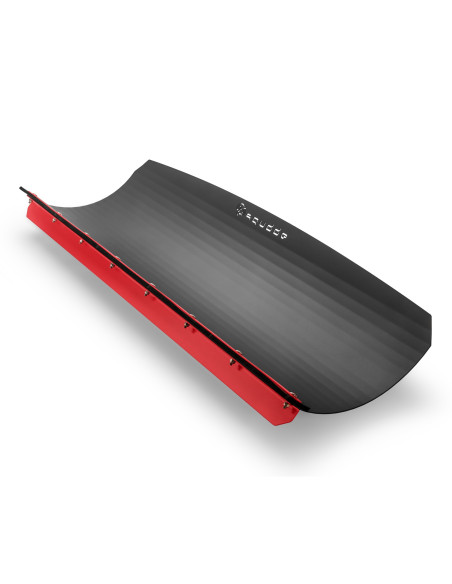

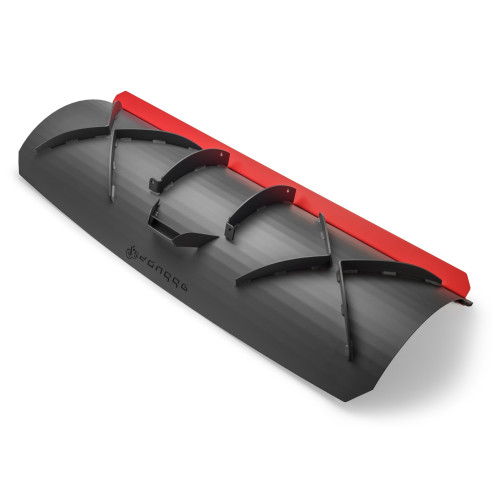

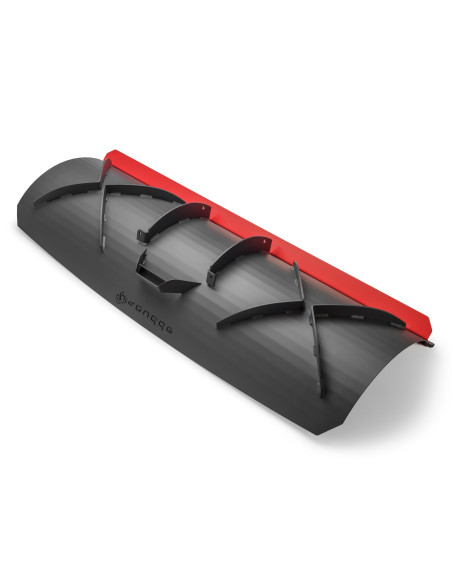

Plow Blade:

• The plow blade is made from 3 mm thick sheet metal.

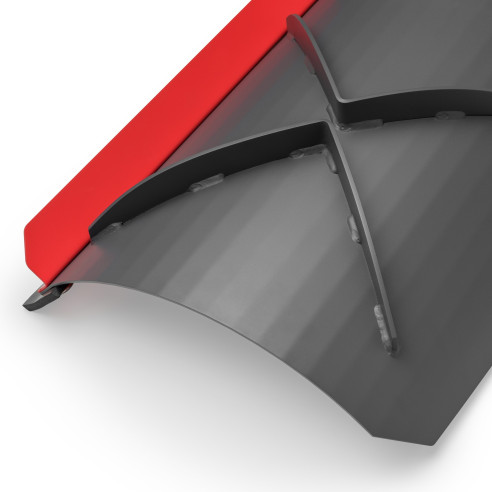

• Additional reinforcement of the plow blade with ribs made of 5 mm thick sheet metal for stability and durability.

• Plow blade dimensions: width 150 cm, height approximately 50 cm, weight approximately 40 kg.

Adjustability:

• 5 horizontal adjustment options for the plow blade.

• 3 vertical adjustment options for the plow blade.

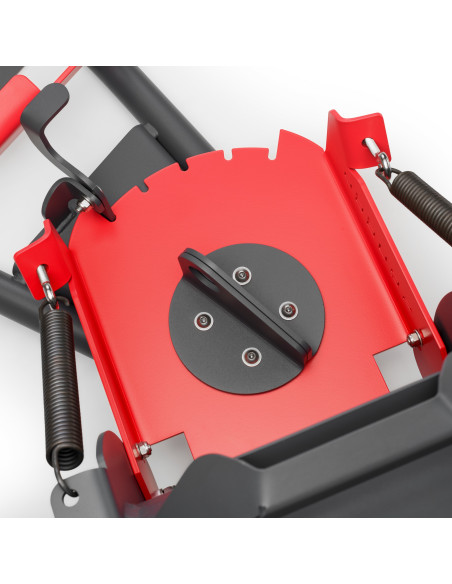

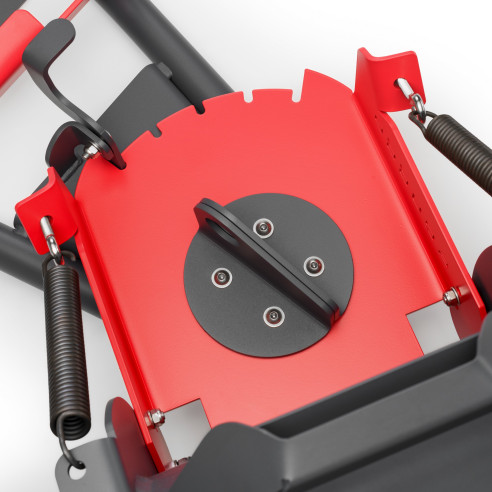

Shock Absorption System:

• Spring shock absorption system for the plow blade, providing protection against uneven terrain and impacts.

• Adjustable spring tension.

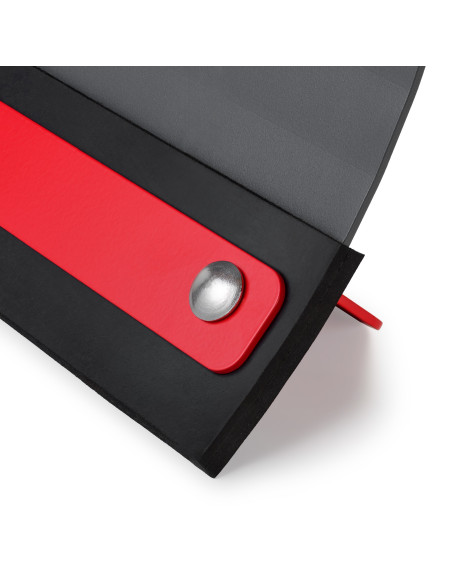

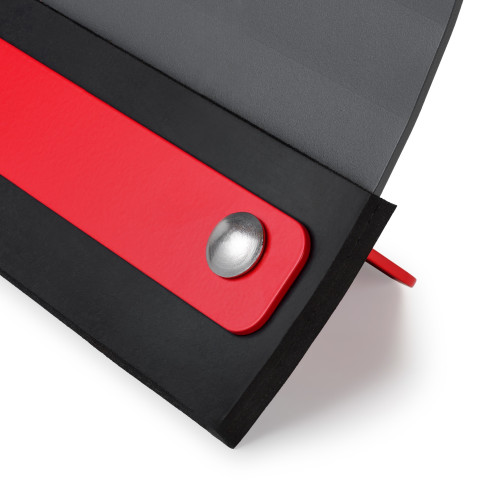

Scraper Rubber:

• 10 mm thick scraper rubber reinforced with two layers of fabric lining.

Material:

• High-quality steel powder-coated in graphite and red colors.

• The plow blade is reinforced with additional profiles for stability and durability.

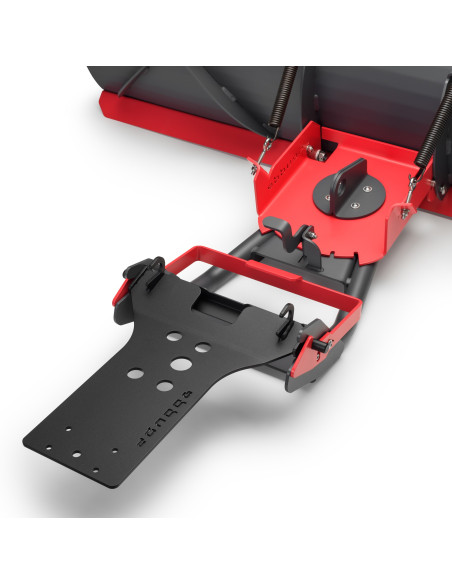

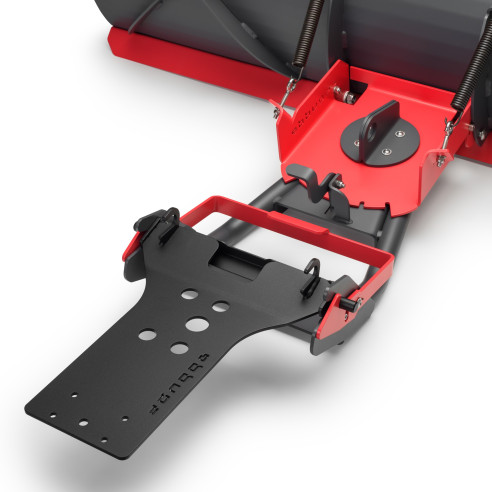

Installation:

• Quick plow installation system.

• Handle for easy plow transportation.

User Convenience:

Handle for easy plow transportation.

• Plow Blade

• Frame

• Mounting bracket with a complete set of screws and nuts

• Springs (optional)
