PROM.SQ18
2,390.00zł
Tax included Shipping time 1-2 days

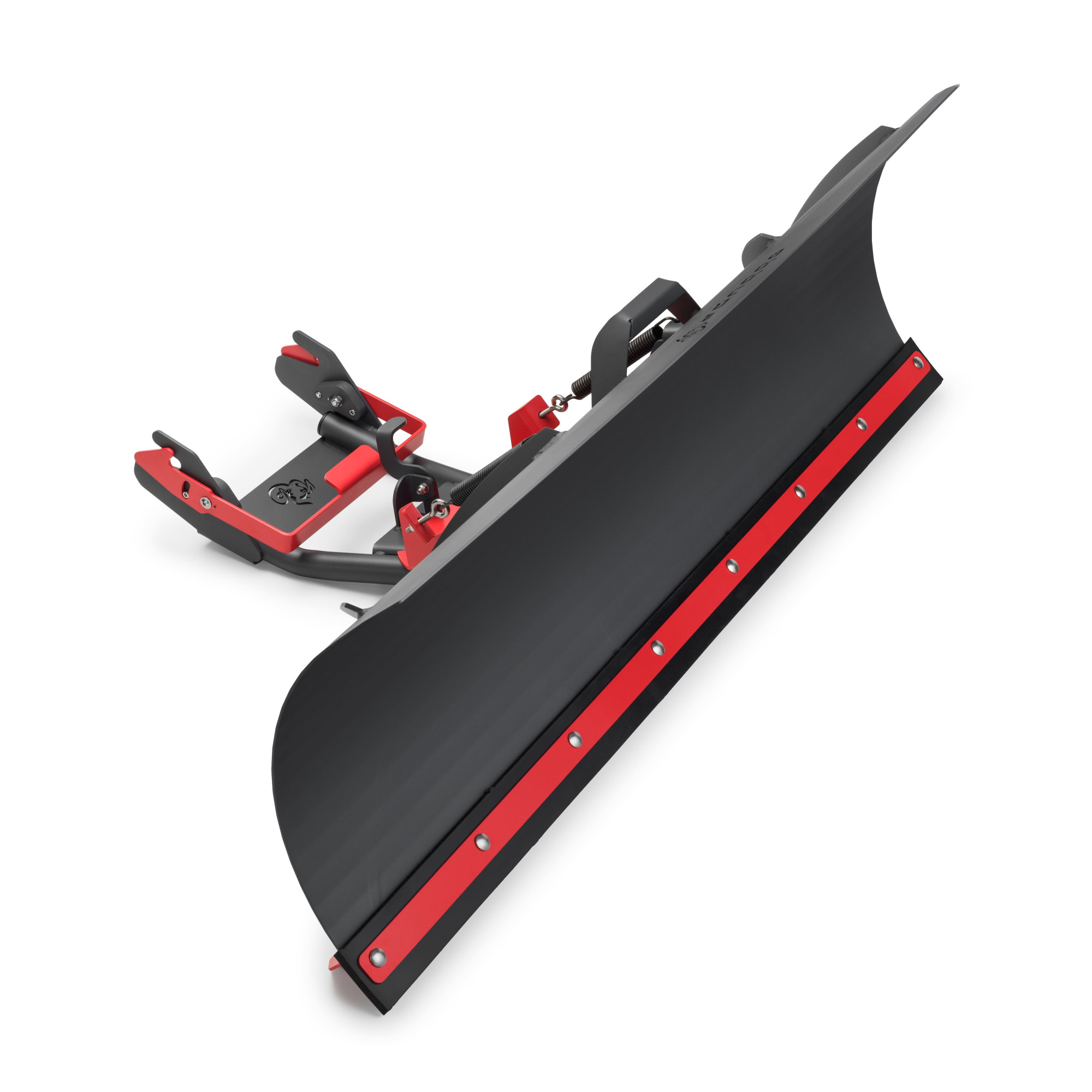

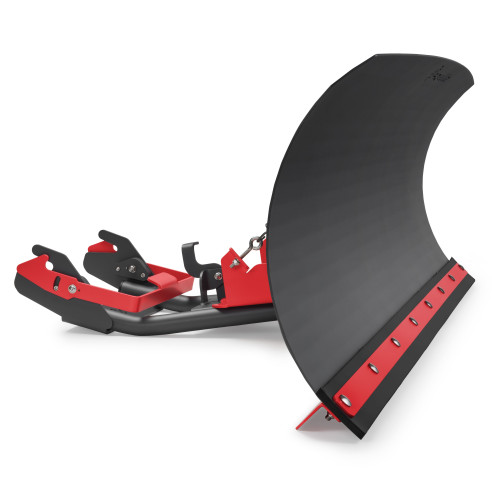

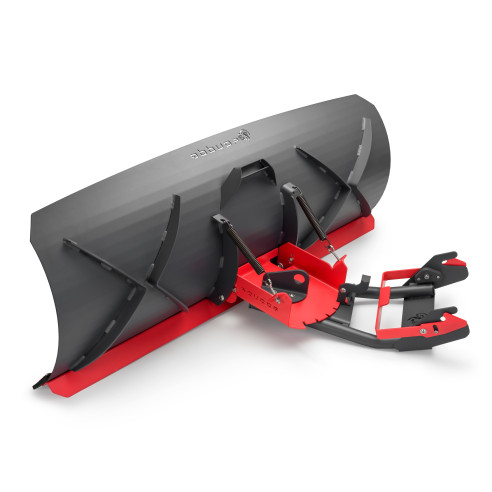

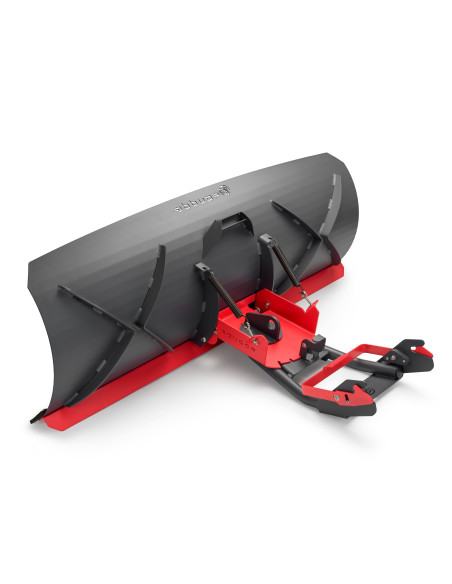

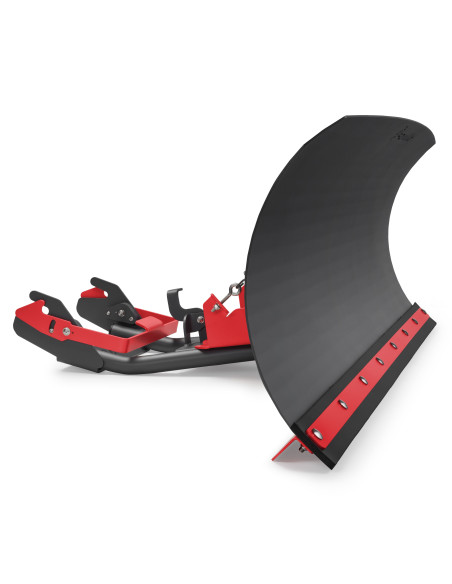

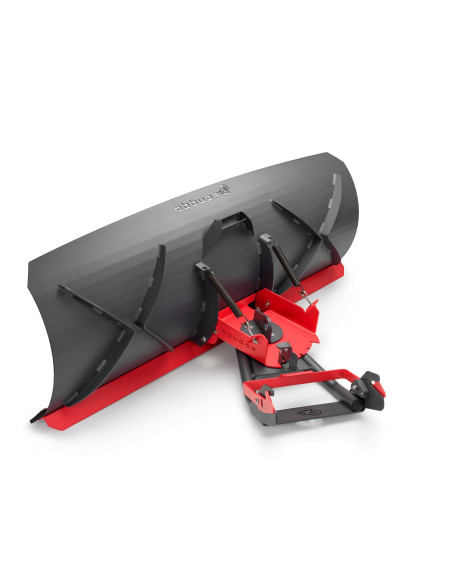

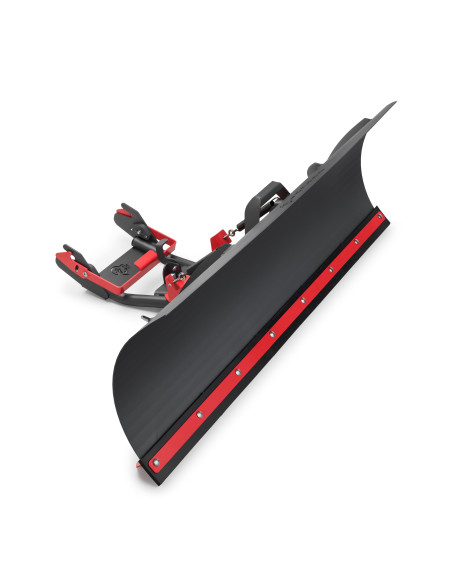

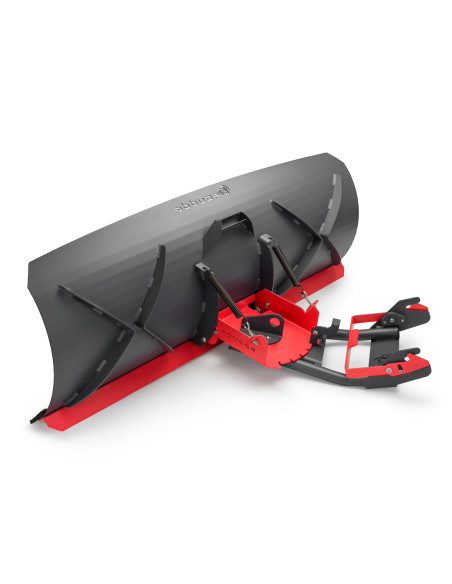

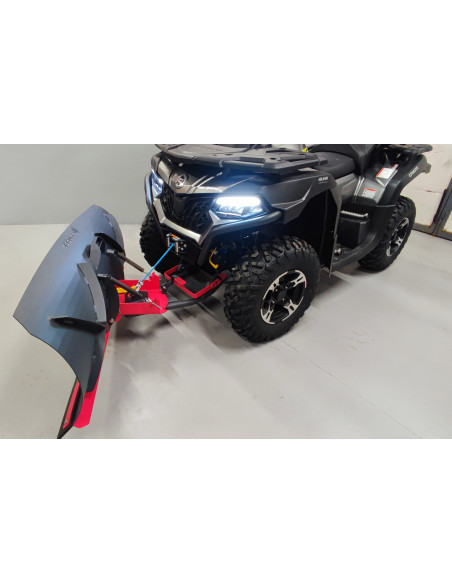

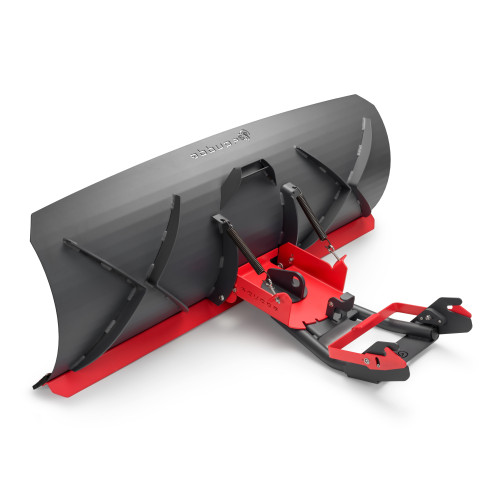

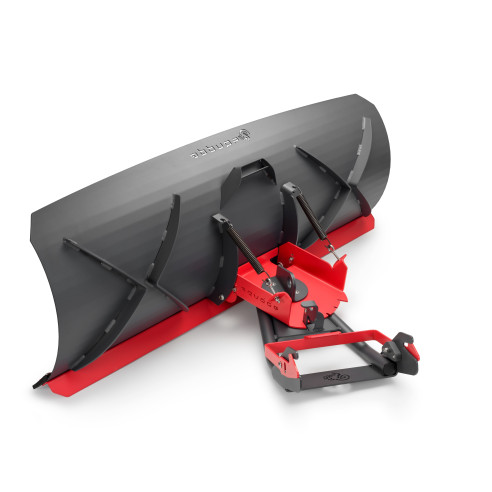

PLOW FOR QUAD SUZUKI KINGQUAD 500 / 750 2019+ - front, quick installation

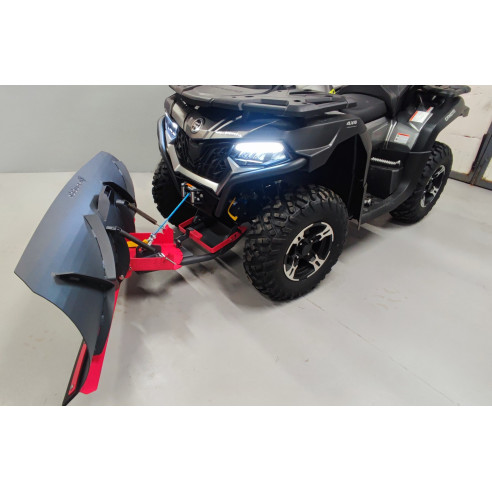

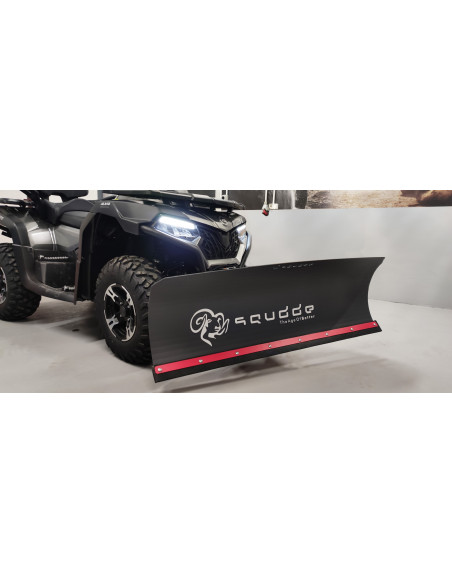

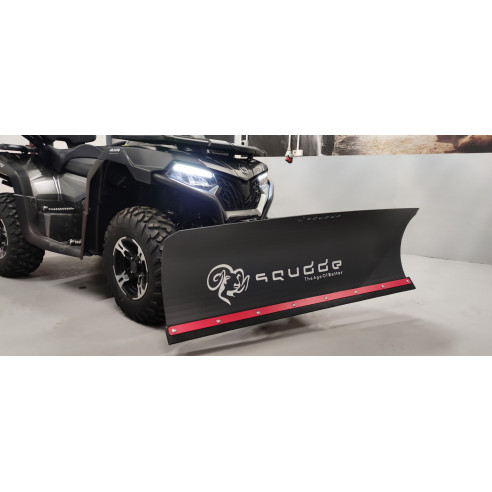

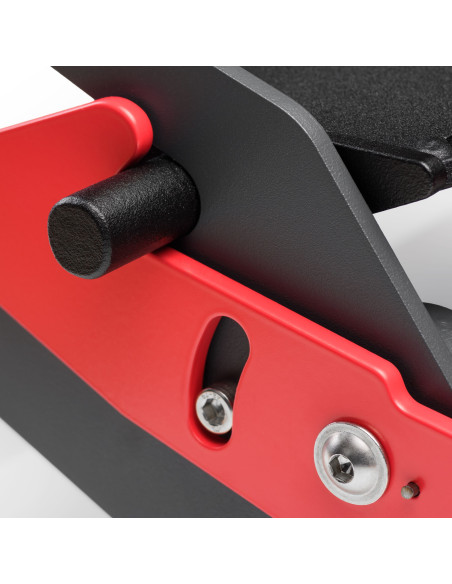

The system used makes it easy to mount the plow by clicking on the mounting plate without the need for additional screws for connection. The mount installed to the frame stays with the quad even when the plow is not in use - it does not reduce the chassis height clearance and acts as a front shield for the quad.

SUZUKI KINGQUAD 500 (2019-)

SUZUKI KINGQUAD 750 (2019-)

Frame Construction:

  • Sturdy steel frame construction made of 38 mm diameter tubes with a wall thickness of 2.6 mm.

  • The frame construction includes 5-6 mm thick sheet metal.

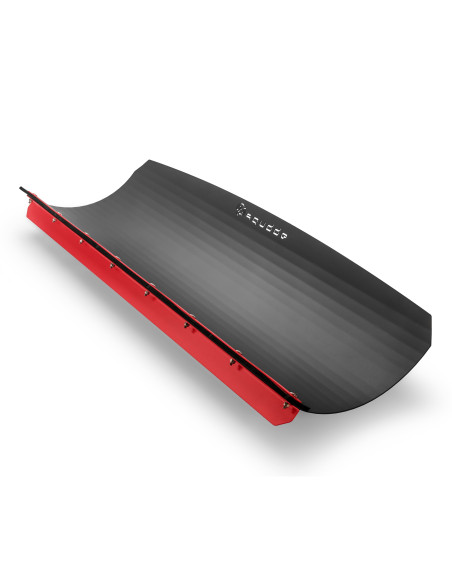

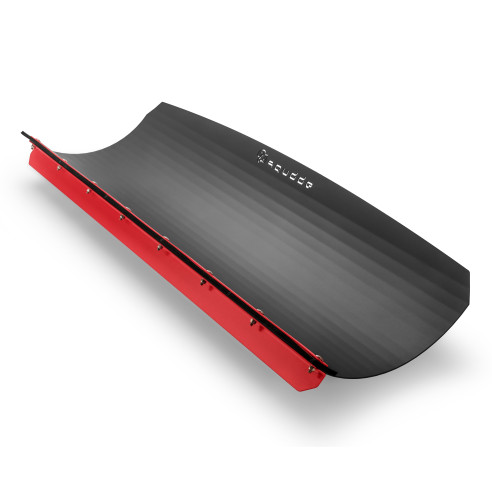

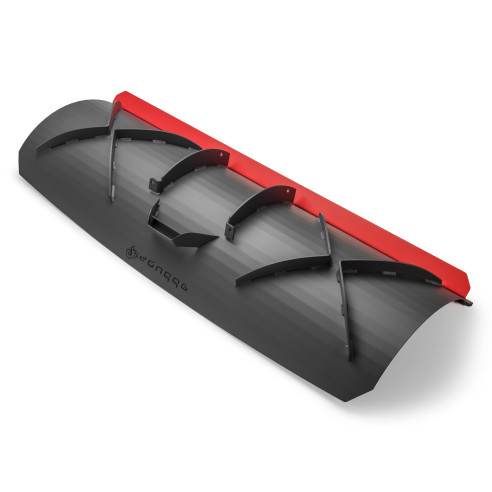

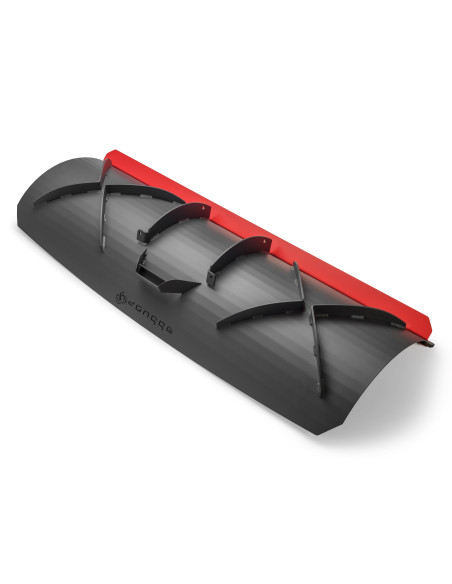

Plow Blade:

  • The plow blade is made from 3 mm thick sheet metal.

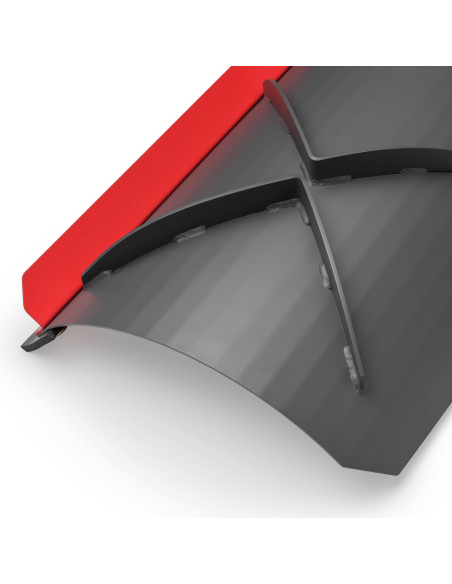

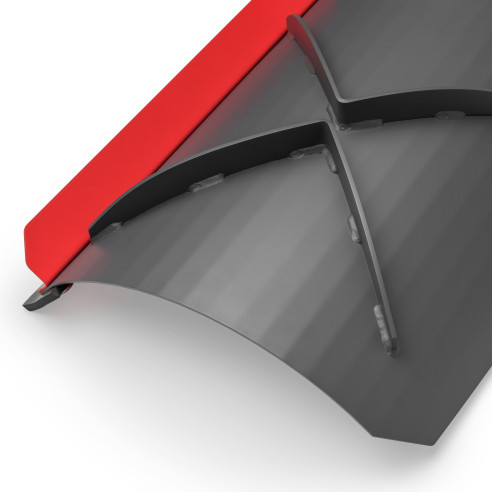

  • Additional reinforcement of the plow blade with ribs made of 5 mm thick sheet metal for stability and durability.

  • Plow blade dimensions: width 150 cm, height approximately 50 cm, weight approximately 40 kg.

Adjustability:

  • 5 horizontal adjustment options for the plow blade.

  • 3 vertical adjustment options for the plow blade.

Shock Absorption System:

  • Spring shock absorption system for the plow blade, providing protection against uneven terrain and impacts.

  • Adjustable spring tension.

Scraper Rubber:

  • 10 mm thick scraper rubber reinforced with two layers of fabric lining.

Material:

  • High-quality steel powder-coated in graphite and red colors.

  • The plow blade is reinforced with additional profiles for stability and durability.

Installation:

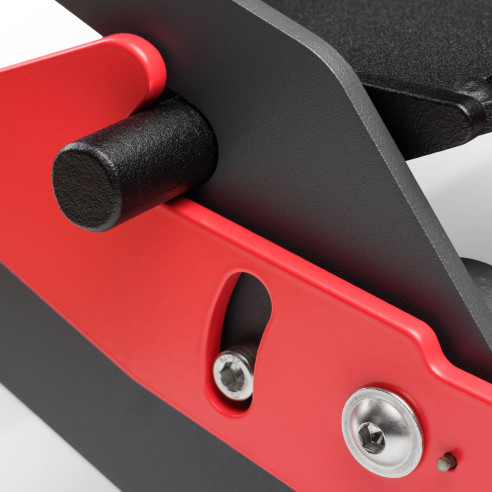

  • Quick plow installation system.

  • Handle for easy plow transportation.

User Convenience:

Handle for easy plow transportation.

  • Plow Blade

  • Frame

  • Mounting bracket with a complete set of screws and nuts

  • Springs (optional)
