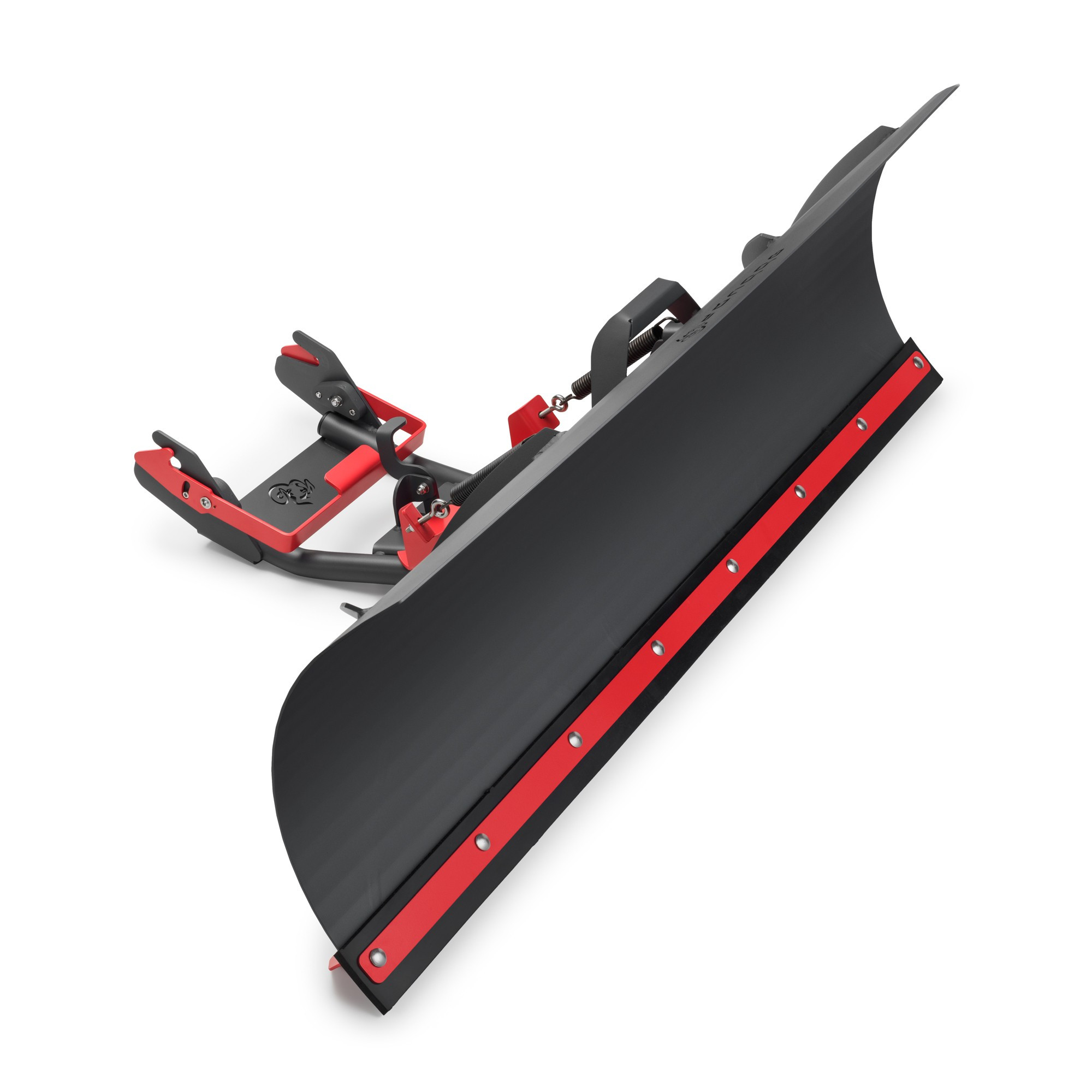

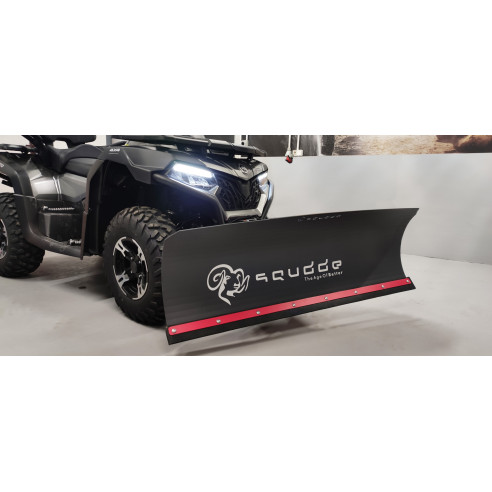

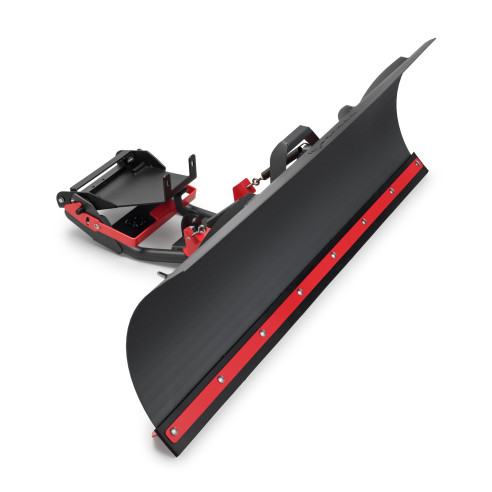

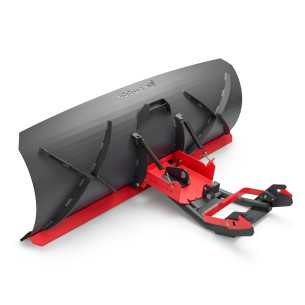

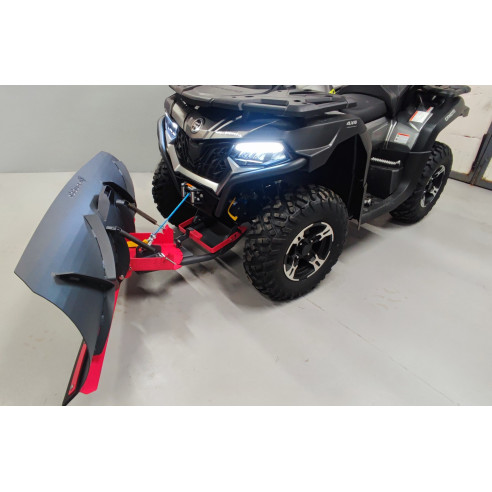

PLOW FOR QUAD LINHAI 550L - SQUDDE

LINHAI 550L

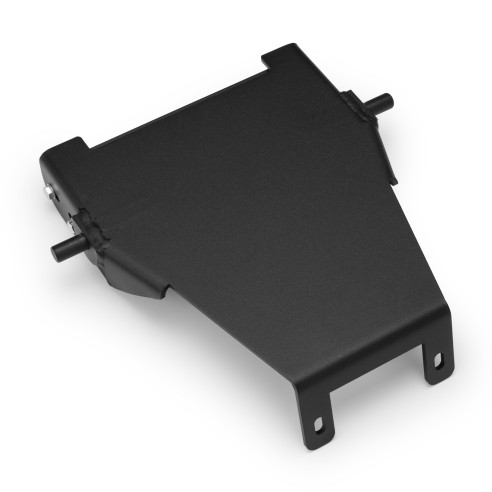

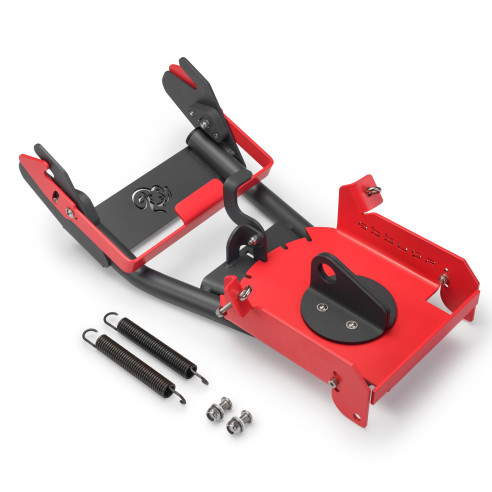

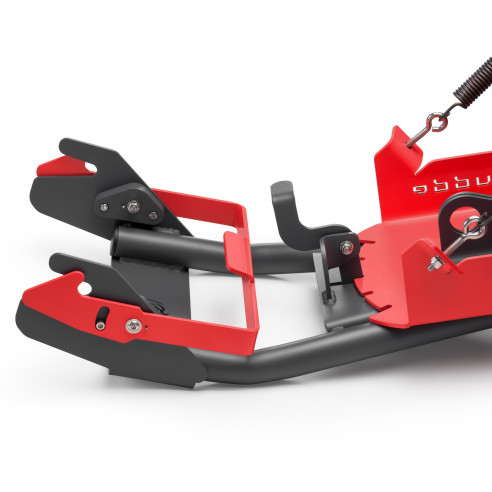

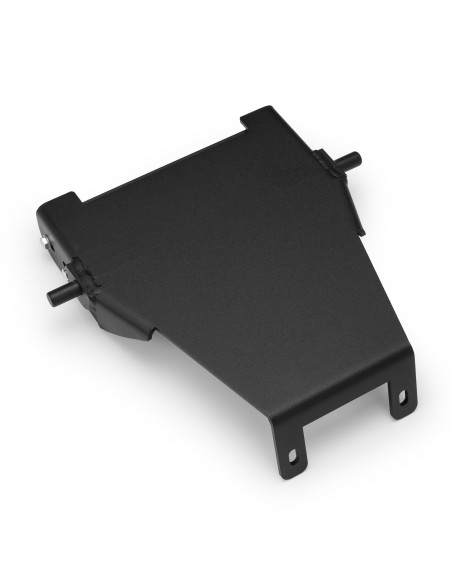

Frame Construction:

• Sturdy steel frame construction made of 38 mm diameter tubes with a wall thickness of 2.6 mm.
• The frame construction includes 5-6 mm thick sheet metal.

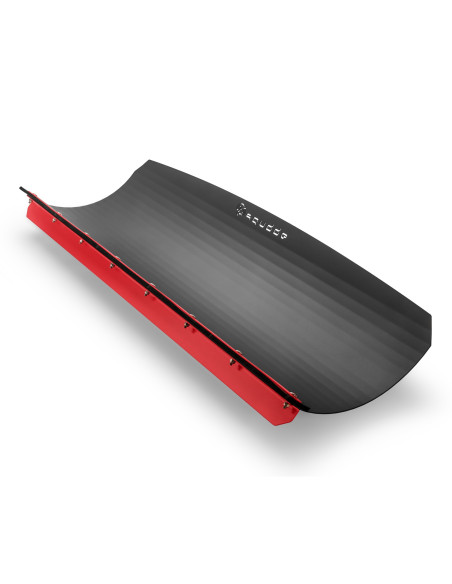

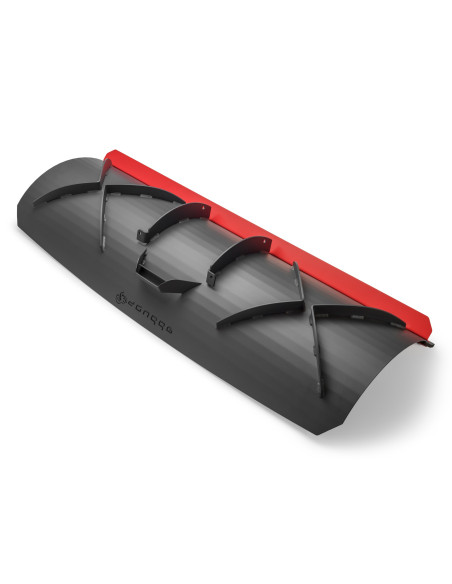

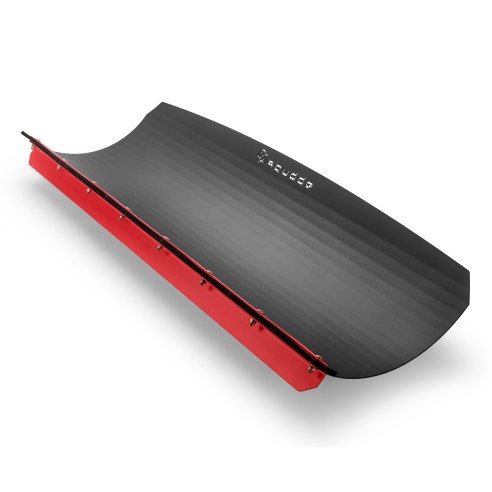

Plow Blade:

• The plow blade is made from 3 mm thick sheet metal.

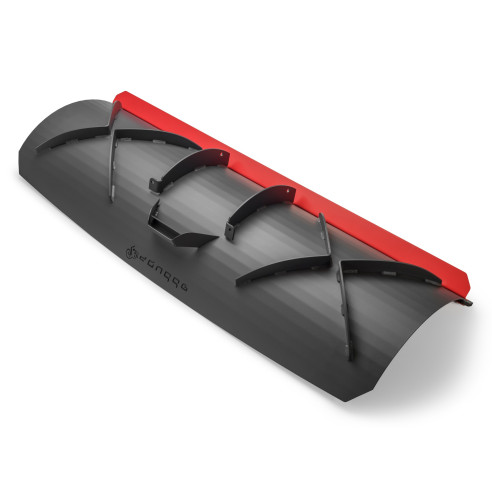

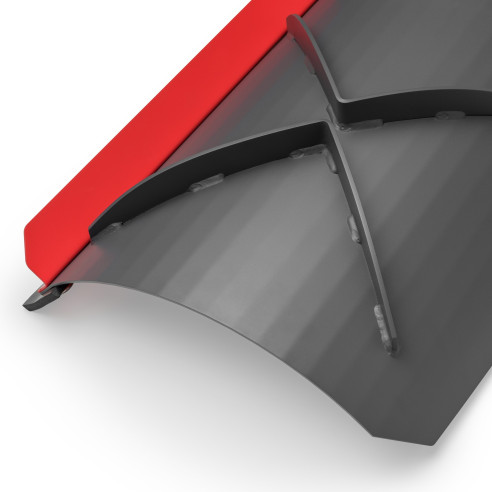

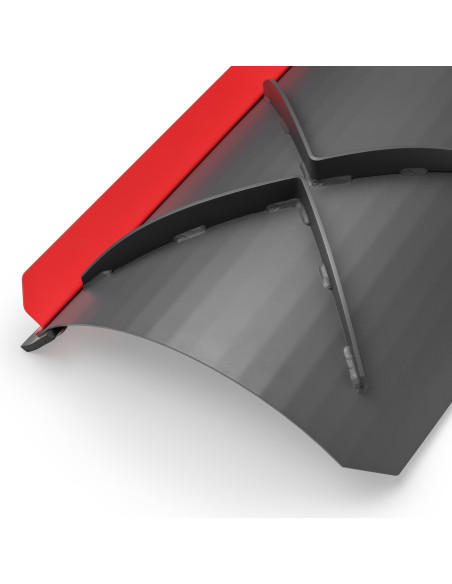

• Additional reinforcement of the plow blade with ribs made of 5 mm thick sheet metal for stability and durability.
• Plow blade dimensions: width 150 cm, height approximately 50 cm, weight approximately 40 kg.

Adjustability:

• 5 horizontal adjustment options for the plow blade.
• 3 vertical adjustment options for the plow blade.

Shock Absorption System:

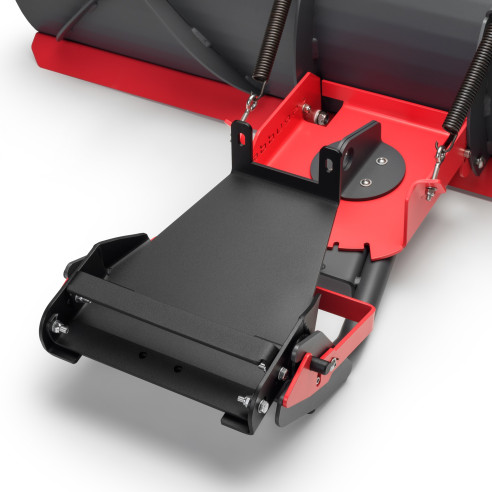

• Spring shock absorption system for the plow blade, providing protection against uneven terrain and impacts.
• Adjustable spring tension.

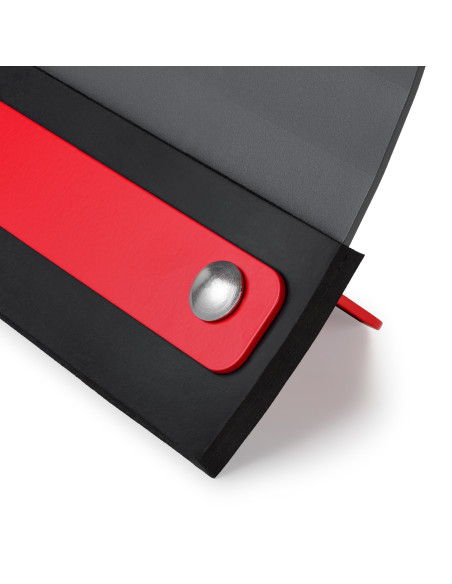

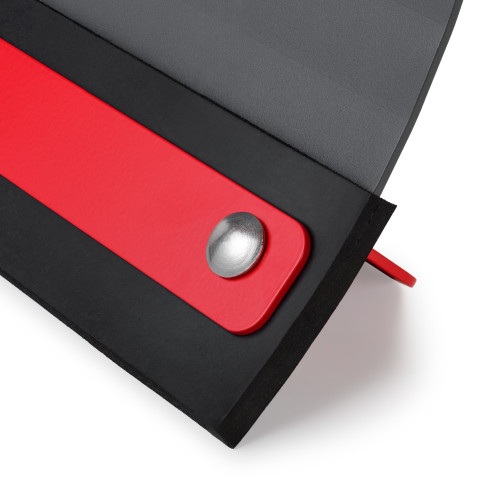

Scraper Rubber:

• 10 mm thick scraper rubber reinforced with two layers of fabric lining.

Material:

• High-quality steel powder-coated in graphite and red colors.
• The plow blade is reinforced with additional profiles for stability and durability.

Installation:

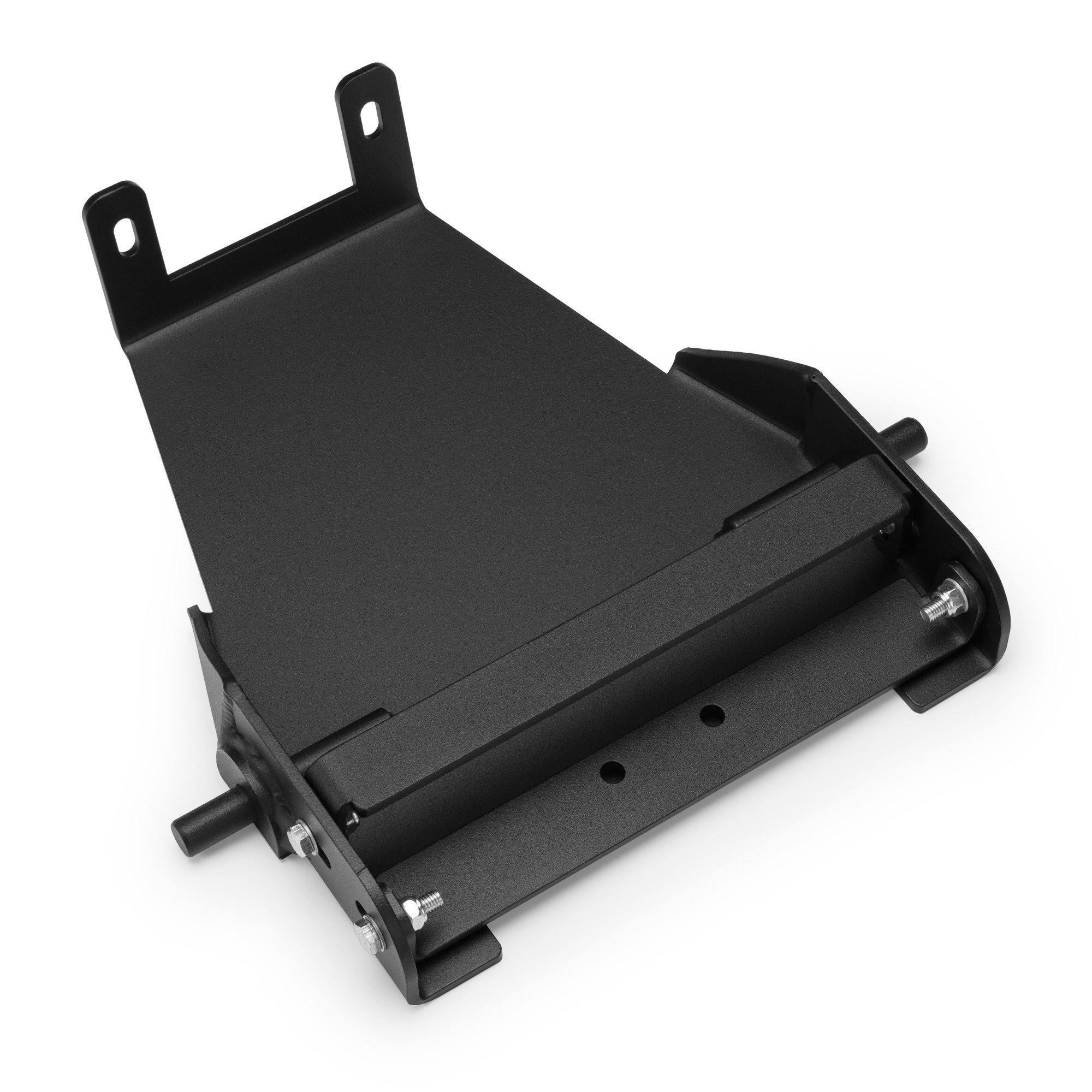

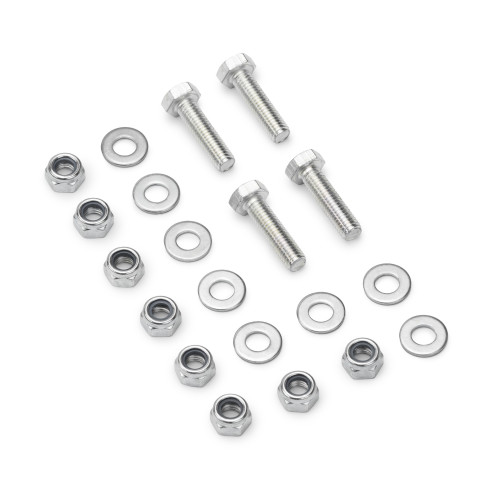

• Quick plow installation system.
• Handle for easy plow transportation.

User Convenience:

Handle for easy plow transportation.
